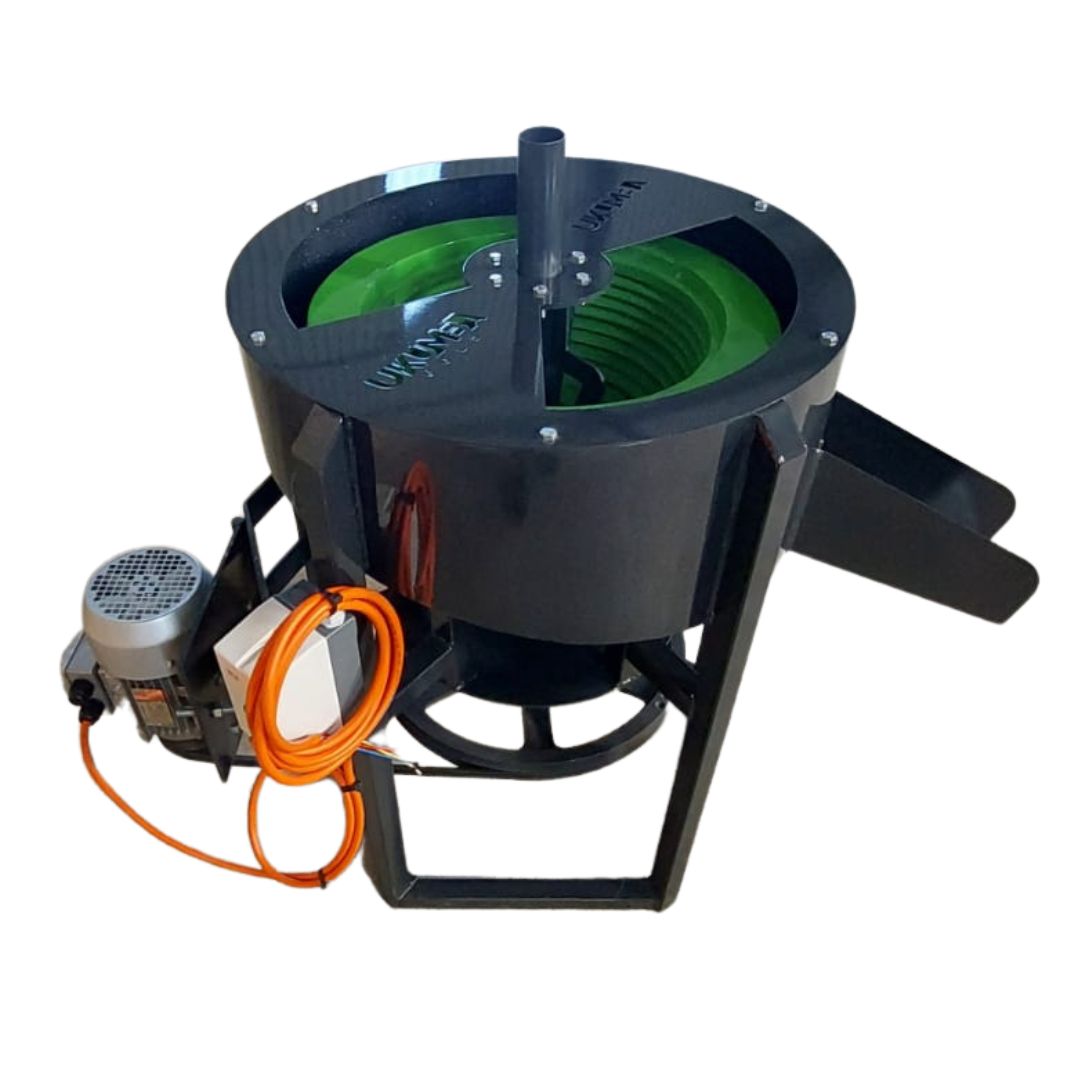

Ukumba Gold Centrifuge concentrator
The Ultimate in precision engineering. The Ukumba Gold Centrifuge Concentrator has proven itself to be effective in successfully separating gold and other minerals under high speed centrifugal rotation.
The Ukumba concentrator is a gravity fed piece of equipment that is used for placer gold mining, as well as artisanal hard rock mining to recover gold, replacing amalgamation. Commonly used for mining tailing dumps amongst other applications.
Available in two sizes - 2 Tons Per Hour as well as a 5 Ton Per Hour unit with an approximate size of 400mm & 800mm in Diameter.
Basic Features & Specifications:
- Processes between 2 & 5 Tons Per Hour
- Gravity Fed & high recovery rate
- Enviromentally friendly & requires no chemical agitation or bi-products
- Low water & power consumption
- Low maintenance cost
- Water flow & feed regulation
- 1.1kw - 2.2kw motor included
- Max feed size 0-4mm
- Water pressure 0.1 - 0.2 kpa
- Dimensions : To be requested by our sales team
