Kumo Shaker Deck

Kumo-Flo Shaker Deck

The Kumo Shaker Deck is a simple yet effective first stage material separation table. The purpose of this table is to separate heavier particles from lighter gangue by means of riffles impeding the downward flow and a horizontal shaking motion carrying the heavier particles off the end of the table into an integrated groove.

The Kumo Shaker Deck includes a valve bank and adjustable spray bar, start/stop panel with variable speed drive and a fully adjustable deck providing the user with ultimate control and customizability.  The water at the spray bar can be fine tuned by adjusting the valves along the valve bank.

Feed bin is not included as a standard and can be added on request

Basic Features & Specifications:

  • Processes between 500-750kg/h

  • Can seperate various metals

  • 2.2 kW 380VAC Motor
  • Includes Variable Speed Drive

  • Includes Stop/Start Panel

  • Water flow valve to regulate water on table

  • Adjustable table tilt
  • Optional Feed Bin

Additional Images

Kumo Shaker Deck (2)

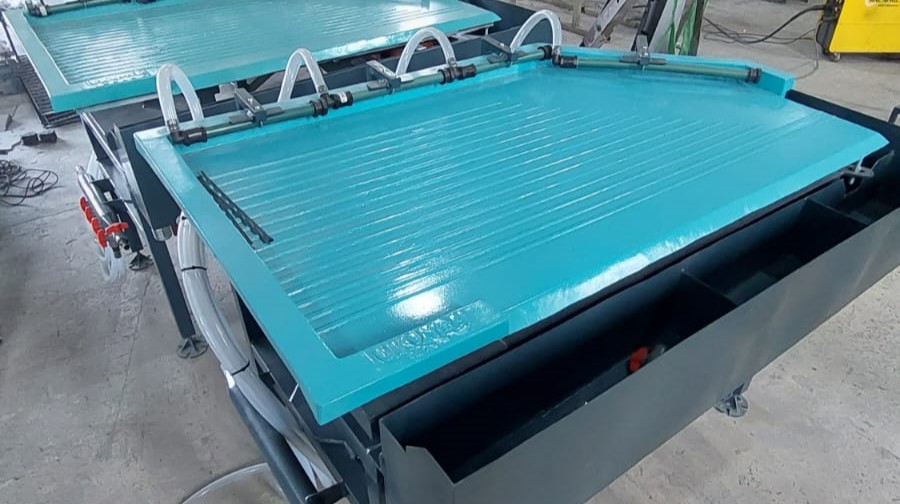

Kumo Shaker Deck - Copy
